High-Strength Galvanized Steel Floor Decking Systems
Our steel floor decking profiles are engineered to meet global structural standards, offering outstanding load-bearing capacity, rapid construction speed, and long-term durability. Manufactured from high-grade galvanized steel coils, our metal decks serve as the ultimate solution for composite floor slabs in modern construction projects.
-
Thickness Options: 0.7mm – 1.5mm
-
Material Strength: G250 – G550 (High Tensile)
-
Surface Coating: High-galvanized, corrosion-resistant layers

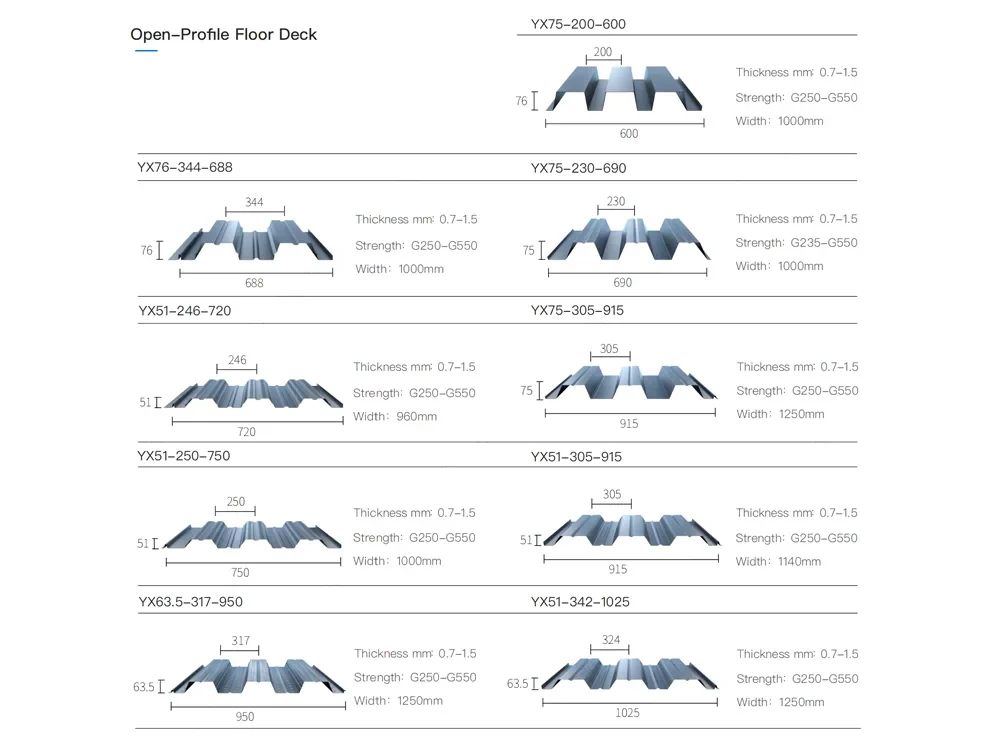

1. Open-Profile Floor Deck
Applied to non-composite floor slabs, this profile serves primarily as a permanent formwork during concrete pouring.
Available Models:
- YX75-200-600 (Rib Height: 75mm, Coverage Width: 600mm)
- YX76-344-688 (Rib Height: 76mm, Coverage Width: 688mm)
- YX75-230-690 (Rib Height: 75mm, Coverage Width: 690mm)
- YX51-246-720 (Rib Height: 51mm, Coverage Width: 720mm)
- YX75-305-915 (Rib Height: 75mm, Coverage Width: 915mm)
- YX51-250-750 (Rib Height: 51mm, Coverage Width: 750mm)
- YX51-305-915 (Rib Height: 51mm, Coverage Width: 915mm)
- YX63.5-317-950 (Rib Height: 63.5mm, Coverage Width: 950mm)
- YX51-342-1025 (Rib Height: 51mm, Coverage Width: 1025mm)
Typical Structure of Metal Floor
Key Advantage:
It completely eliminates the tedious process of traditional formwork installation and removal, significantly simplifying and accelerating the onsite construction timeline. Once completed, the smooth steel ceiling surface is aesthetically pleasing, easy to maintain, and ready for future decoration.
2. Closed-Slab Floor Deck
Specifically designed for advanced composite floor systems, providing heavy-duty structural stability.
Available Models:
- YX65-170-510 (Rib Height: 65mm, Coverage Width: 510mm)
- YX65-185-555 (Rib Height: 65mm, Coverage Width: 555mm)
- YX65-222-660 (Rib Height: 65mm, Coverage Width: 660mm)
- YX65-254-762 (Rib Height: 65mm, Coverage Width: 762mm)
- YX65-240-720 (Rib Height: 65mm, Coverage Width: 720mm)
- YX60-185-555 (Rib Height: 60mm, Coverage Width: 555mm)
Typical Structure of Metal Floor
Key Advantage:
During the construction stage, it acts as a reliable formwork. During the service life of the building, it seamlessly bonds with the cured concrete, acting as tensile reinforcement to reduce the usage of structural rebar. It features unique surface ribbed patterns designed to provide ultra-strong adhesion to concrete, drastically enhancing structural safety while keeping a smooth, indoor suspension-ready finish.
